High Power Dual Table Steel Metal CNC Fiber Laser Cutting Machine

Quantity:
  • ESF-3015WCE
  • EKS Laser
  • 8456110090
  • 3000*1500mm
  • whole cover
  • NO
  • 1-20mm(3000W)

EKS laser working people


Fiber laser cutting machine







ESF-3015WCE  fiber laser cutting machine, the maximum cutting size of ESF-3015WCE is 3000mm*1500mm.


Both the cutting seam and the thermal effect are very small, which is especially suitable for the processing of the sheet metal.


fiber cutting machine with exchangeable table


IPG LASER source



IPG Fiber laser source


 IPG is one of the best laser sources in the   world.




BM111 Laser cutting head

 Raytools Laser Cutting Head



NC30 Laser cutting head



WSX Laser Cutting Head




Machine bed: Annealing for 15 hours(650),  Secondary processing by CNC machining centermore than 3000KG, suitable for 1000~3000W laser source, Maximum 1.4G acceleration


CNC machining center


Laser Cutting bed


Laser cutting machine bed

Separated design of socket, easier to install and maintain.



Separated type control cabinet


Air conditioner can make sure all components can work steadily in hostile environment.


air condition



Separated type control cabinet




Separated design of socke


Reduce the impact of vibrations from working machine.


control button

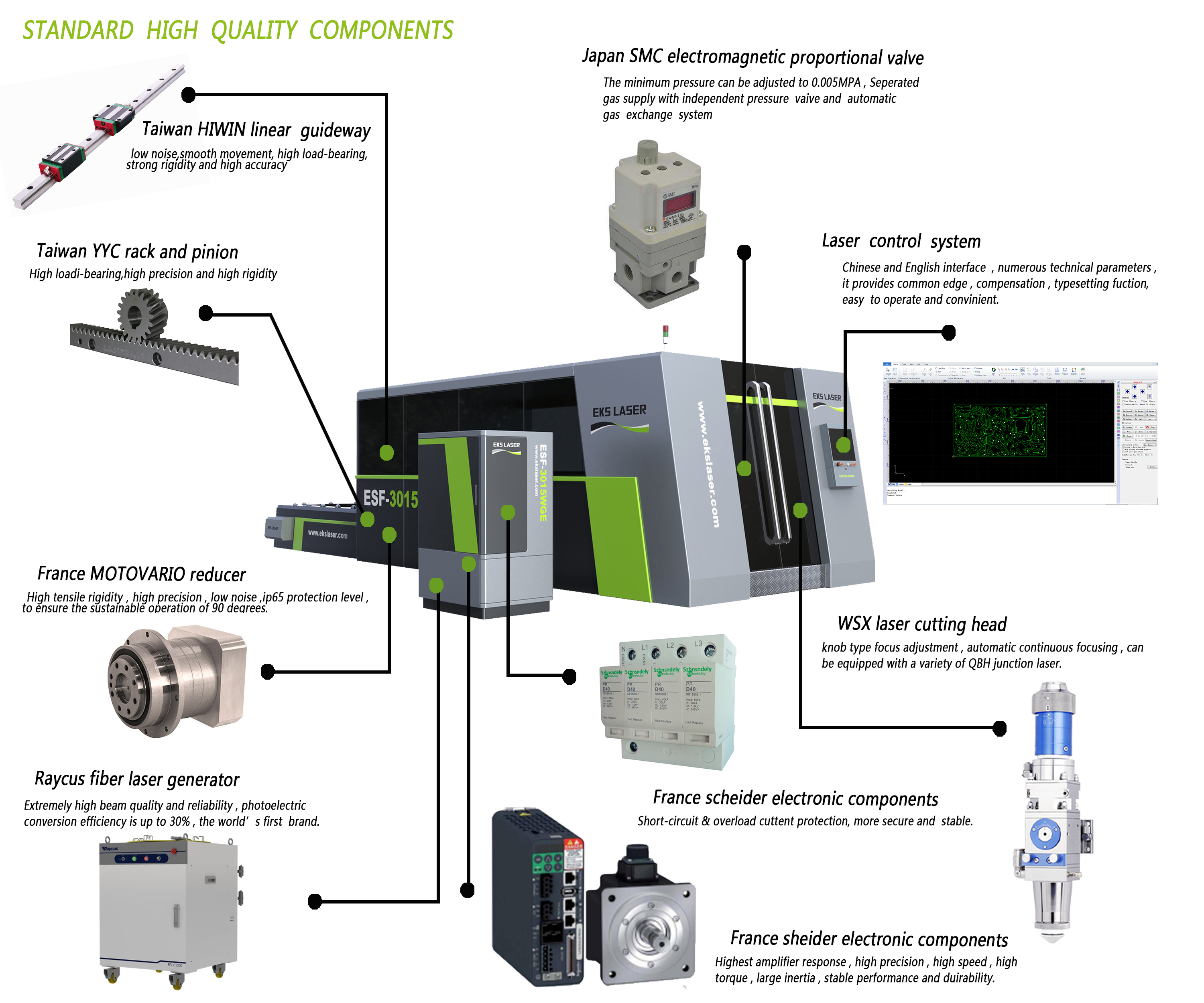

France SCHNEIDER electronic component


SCHNEIDER electronic component





France Schneider servo motor,

the highest amplifier responsiveness,100m/minute



Schneider-Servo-Motor-BCH-80mm-BCH2LF0733CA5C

Deslagging system:


The movable tray under the machine tool could collect the scraps and small product during cutting process.


Deslagging system


Auto oil filling for rail and gear rack


Auto oil filling


Professional Cypcut Control system(FSCut 2000)


 Cypcut Control system


Cypcut is powerful, simple to operate, compatible with DXF, PLT, AI, NC-MASTER format and etc.



Separated control unit with air conditioner, which can keep a suitable working temperature for laser source and electric parts inside.


Factory Sightseeing


Factory Sightseeing


Factory Sightseeing2



List of Components


Item

Name

QTY

Brand

1

Laser



1)

Fiber Laser

1set

IPG

2

Laser   Cutting Head

1

EKS laser

1)

Fiber-optical Laser   Cutting Head

1set

Raytools/WSX

3

Control   System



1)

Fiber Control System

1set

Cypcut 2000

4

Machine   Tool



1)

Machine tool bed

1set

EKS laser

2)

Gear of X and Y axis(1.5kw   & 2.0kw)

1 set

YYC

3)

Lead rail of X, Y and Z   axis

1 set

HIWIN

4)

Ball screw of Z axis

1set

HIWIN

5)

Servo motor and driver of   X and Y axis

3sets

France Schneider

6)

Reduction box

1set

France Motovario

7)

Pneumatic system

1 set

 Japan SMC

8)

Control cabinet

1set

Disconnect-type

9)

Accessories

1 set

EKS laser

5

Cooling   System



1)

Water cooling system

1 set

Tongfei

6

Standard   auxiliary component



1)

Movable tray

1 set

EKS laser

2)

Exhaust fan

1 set

EKS laser

3)

Pneumatic   clamp

1 set

EKS laser



Model Type

ESF-3015WCE

ESF-4015WCE

ESF-4020WCE

ESF-6015WCE

ESF-6020WCE

Laser   Generator

IPG/Raycus

Working   area

3000*1500mm

4000*1500mm

4000*2000mm

6000*1500mm

6000*2000mm

Laser   power

1000w/1500w/2000w/3000w/4000w/6000W/8000W/10000W

Max.   speed

0-100/min(Depending on the material and   thickness)

Positioning   accuracy

±0.03mm

Repeat   positioning accuracy

±0.02mm

X-axis   travel

1500mm/2000mm

Y-axis   travel

3000mm/4000mm/6000mm

Z-axis   travel

100mm

Acceleration

1.4G

Transmission

Taiwan high precision gear rack +high   precision linear guide rail

Power   supply

380V/50Hz~60Hz

Machine   weight

8000kgs/10000kgs/12000kgs/14000kgs/16000kgs



Technical parameters



Laser output power

3000W

Laser wavelength

1070 nm

Laser medium

Glass fiber with rate-earth elementbrand IPG

Laser beam quality

<0.373mrad

Min. beam width

≤0.125mm

Working area

3000mm×1500 mm

Axial accuracy

≤±0.05mm/m

Repeated accuracy

≤±0.03mm/m

Max. thickness of cutting   carbon steel

25mm (Optimum thickness 0.5--12mm)

Max. thickness of cutting   Stainless Steel

12mm (Optimum   thickness 0.5--8mm)

Power supply

380V/50HZ

The Period of Continuous Working

24 hours

Weight of main Machine

8000KG

Outline Size

8384mm*3112mm*2200mm



3015WCE laser cutting machine

Working Cost( Only for reference)


Electricity cost (3000W)

Name

powerkW

     electricity

real consumption

laser source

       12

     ≤25.7

25.7x0.8x0.15=3.084 USD

cutting bed

8.5

         (use 80% power for              cutting,0.15USD/1kw

chiller

         3

exhaust fan

2.2

Gas consumption cost

type

price

USD/bottle

lifemin/bottle

totalUSD/hour

Remark

O2

2.3

60

2.3

1mm carbon steel

N2

3.85

15

15.38

1mm stainless

liquid N2

49.23mid

720

4.11

1mm stainless

Air

0

0

1.02electronic

below 2mm

consumable spare parts cost

consumable

life(hour)

Price(USD

total

USD/hour

Remark

Protective lens'

≥240

15.38

  0.06USD/hour

The better the environment, the longer the working life

Copper nozzel

≥600

23.08

  0.04USD/hour

   very difficult

Ceramic ring

≥1500

76.92

 0.05USD/hour

Total

0.15USD/hour












 Packing video

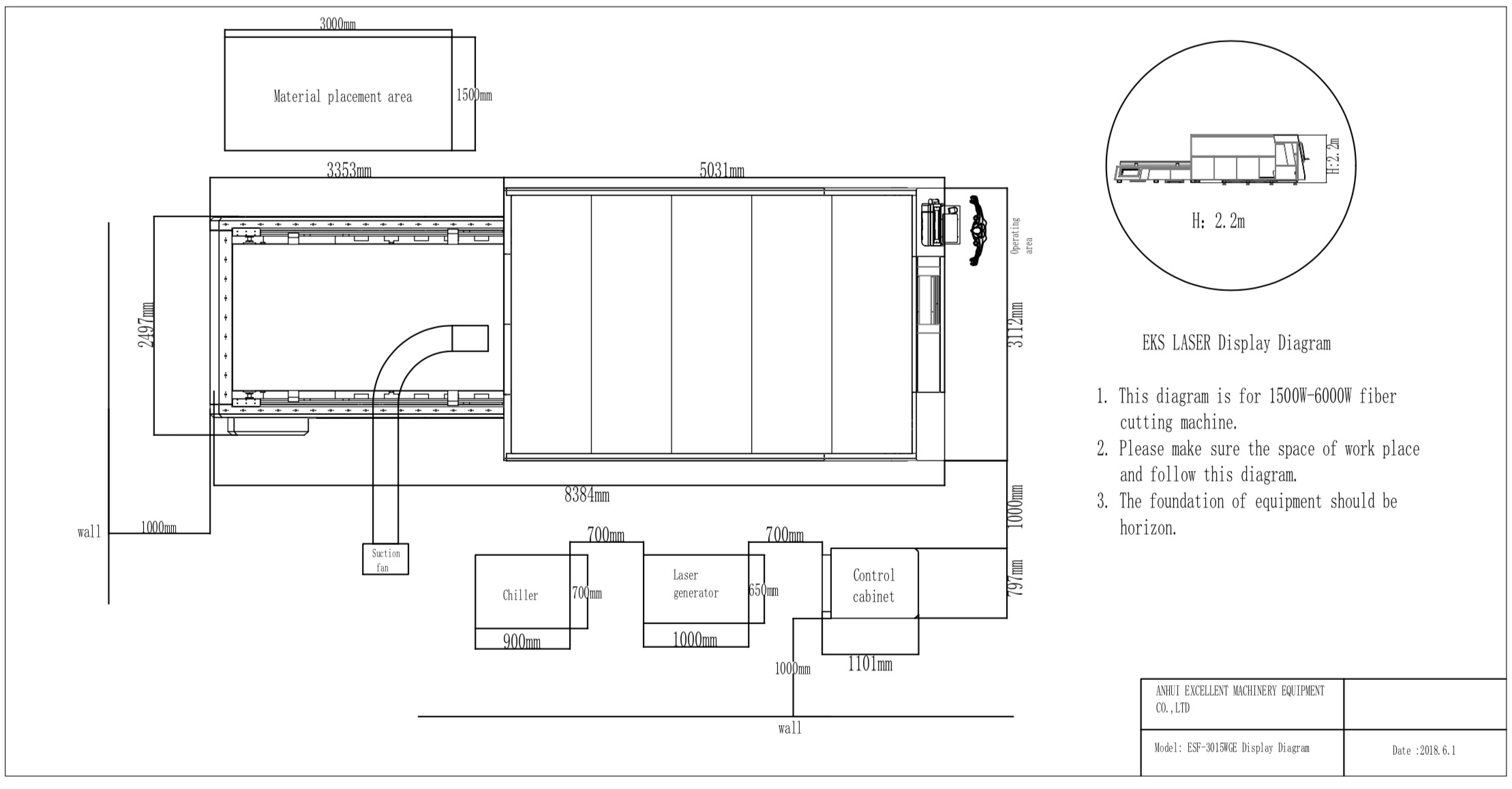

Layout Drawing


3015WCE Layout


Packing Procedures


Packaging EKS Laser


Cutting  video



Cutting Samples


Laser cutting sample


laser cutting sample


Customer EKS laser cutting machine


Customer EKS laser cutting machine

Product Inquiry

Factory Show

Customer Feedback
