High Precision Steel Tube Plate CNC Fiber Laser Cutting Machine

Quantity:
  • ESF-3015CT
  • EKS Laser
  • 8456110090
  • 3000*1500mm
  • NO
  • 3meter
  • 1-15mm(1500W)

EKS laser workers


EKS Laser machine





ESF-3015CT fiber laser cutting machine, the maximum cutting size of ESF-3015CT is 3000mm*1500mm,with 3000mm/6mm pipe cutting leangth.  Both the cutting seam and the thermal effect are very small, which is especially suitable for the processing of the sheet metal& Tube/Pipe.

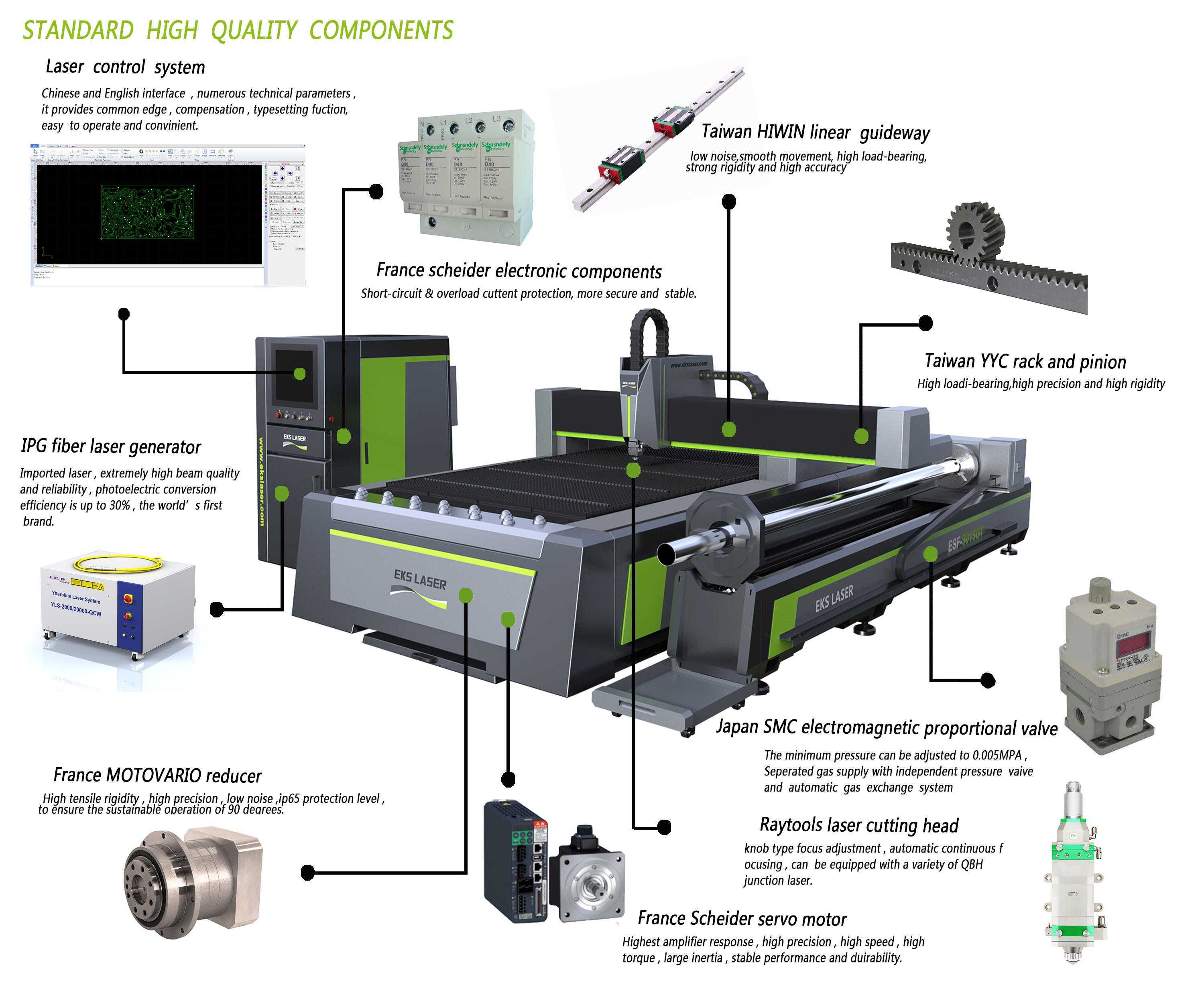

Machine Configuration

Tube Pipe Laser Cutting Machine

Tube cutting parameters    length:  3/6 meter     Diameter : 140mm/160mm/220mm/350mm


angle steel tube cutting


Tube pipe laser cutting machine parameter





IPG LASER source

IPG Fiber laser source


 IPG is one of the best laser sources in the  world.




 RAYTOOLS laser cutting head

BM111PC Tube Laser Cutting Head


WSX Laser Cutting Head

WSX NC30 Laser Cutting Head


Machine bed: Annealing for 15 hours(650),  Secondary processing by CNC machining centermore than 4500KGsuitable for 1000~6000W laser source, Maximum 1.4G acceleration


EKS laser factory detail


fiber cutting bed


fiber cutting bed2


Separated design of socket, easier to install and maintain.



control cabinet


Air conditioner can make sure all components can work steadily in hostile environment.


air condition




Separated type control cabinet




Separated type control cabinet


Reduce the impact of vibrations from working machine.


EKS laser cutting machine





France SCHNEIDER electronic component


SCHNEIDER electronic component




France Schneider servo motor,

the highest amplifier responsiveness,100m/minute

Schneider-Servo-Motor-BCH-80mm-BCH2LF0733CA5C_600x600

Deslagging system:


The movable tray under the machine tool could collect the scraps and small product during cutting process.


movable tray


Auto oil filling for rail and gear rack


Auto oil filling for rail and gear rack


Professional Cypcut Control system(FSCut 3000)


Tube pro- Cypcut3000


Cypcut Control system


Cypcut is powerful, simple to operate, compatible with DXF, PLT, AI, NC-MASTER format and etc.



Separated control unit with air conditioner, which can keep a suitable working temperature for laser source and electric parts inside.


Factory Sightseeing


Factory Sightseeing


fiber cutting machine









Model Type

ESF-3015CT

ESF-4015CT

ESF-4020CT

ESF-6015CT

ESF-6020CT

Laser Generator

IPG/Raycus

Working area

3000*1500mm

4000*1500mm

4000*2000mm

6000*1500mm

6000*2000mm

Laser power

1000w/1500w/2000w/3000w/4000w

Max. speed

0-100/min(Depending on the material and thickness)

Positioning accuracy

±0.03mm

Repeat positioning accuracy

±0.02mm

X-axis travel

1500mm/2000mm

Y-axis travel

3000mm/4000mm/6000mm

Z-axis travel

100mm

Pipe Dimension

Circulartube 20-350mm/Square tube 20*20-350*350mm

Max. Pipe Length

3000mm/6000mm

Acceleration

1.4G

Transmission

Taiwan high precision gear rack +high precision linear guide rail

Power supply



List of Components


ItemName           QTY         Brand
1Laser

1)Fiber Laser1setIPG
2Laser Cutting Head1EKS laser
1)Fiber-optical Laser Cutting Head1setRaytools/WSX
3Control System

1)Fiber Control System1setCypcut 3000
4Machine Tool

1)Machine tool bed1setEKS laser
2)Gear of X and Y axis(1.5kw &   2.0kw)1 setYYC
3)Lead rail of X, Y and Z axis1 setHIWIN
4)Ball screw of Z axis1setHIWIN
5)Servo motor and driver of X and Y axis3setsFrance Schneider
6)Reduction box1setMotovario
7)Pneumatic system1 setJapan SMC
8)Control cabinet1setDisconnect-type
9)Accessories1 setEKS laser
5Cooling System

1)Water cooling system1 setTongfei
6Standard auxiliary component

1)Movable tray1 setEKS laser
2)Exhaust fan1 setEKS laser
3)Pneumatic clamp1 setEKS laser


3015CT Fiber Laser Cutting Machine



Technical parameters


Laser output power

1000W/2000W/3000W/4000W/6000W/8000W/10000W

Laser wavelength

1070 nm

Laser medium

Glass fiber with rate-earth elementbrand IPG

Laser beam quality

<0.373mrad

Min. beam width

≤0.125mm

Working area

3000mm×1500 mm

Axial accuracy

≤±0.05mm/m

Repeated accuracy

≤±0.03mm/m

Max. thickness of cutting carbon steel

12mm (Optimum thickness 0.5--8mm)

Max. thickness of cutting Stainless Steel

4mm (Optimum thickness 0.5--3mm)

Power supply

380V/50HZ

The Period of Continuous Working

24 hours

Weight of main Machine

8000KG

Outline Size

4700mm*2400mm*2200mm



Working Cost( Only for reference)


Electricity cost (4000W)

Name

power(kW)

electricity

real consumption

laser source

10

≤23.7

23.7x0.8x0.15=2.84USD

cutting bed

8.5

(use 80% power for cutting,0.12USD/1kw)

chiller

3

exhaust fan

2.2

Gas consumption cost

type

price(USD/bottle)

life(min/bottle)

total(USD/hour)

Remark

O2

2.3

60

2.3

1mm carbon steel

N2

3.85

15

15.3 8

1mm stainless

liquid N2

49.23(mid)

720

4.11

1mm stainless

Air

0

0

1.02(electronic)

below 2mm

consumable spare parts cost

consumable

life(hour)

Price(USD)

total(USD/hour)

Remark

Protective lens'

≥240

15.38

0.06USD/hour

The better the environment, the longer the working life

Copper nozzle

≥600

23.08

0.04USD/hour

very difficult

Ceramic ring

≥1500

76.92

0.05USD/hour

Total

0.15USD/hour



 Packing video





Layout Drawing


fiber cutting machine display layout

fiber cutting machine display layout


Packing Procedures

fiber cutting machine packing detail



Cutting  video



Cutting Samples


laser cutting sample


laser cutting machine cutting sample

Laser Tube Cutting Samples

fiber cutting machine customers


fiber cutting machine customers


Product Inquiry

Factory Show
