ESF-3015G fiber laser cutting machine, the maximum cutting size of ESF-3015G is 3000mm*1500mm.

Both the cutting seam and the thermal effect are very small, which is especially suitable for the processing of the sheet metal.

Double drive single platform fiber laser cutting machine

IPG Fiber laser source

IPG is one of the best laser sources in the world.

It's more stable and widely used in various fields.

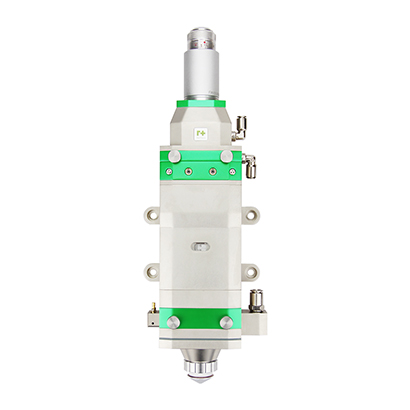

RAYTOOLS laser cutting head

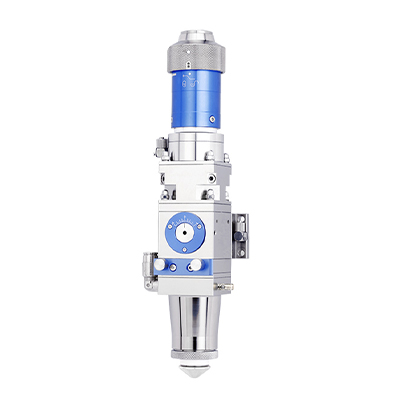

WSX Laser Cutting Head

Machine bed: Annealing for 15 hours(650℃), Secondary processing by CNC machining center，more than 4500KG, suitable for 1000~6000W laser source, Maximum 1.6G acceleration

machining center

Cutting head

cutting machine bed

Separated design of socket, easier to install and maintain.

Separated type control cabinet

Air conditioner can make sure all components can work steadily in hostile environment.

air condition

Separated type control cabinet

Separated design of socke

Reduce the impact of vibrations from working machine.

control button

International Standard Circuits board

Circuits board

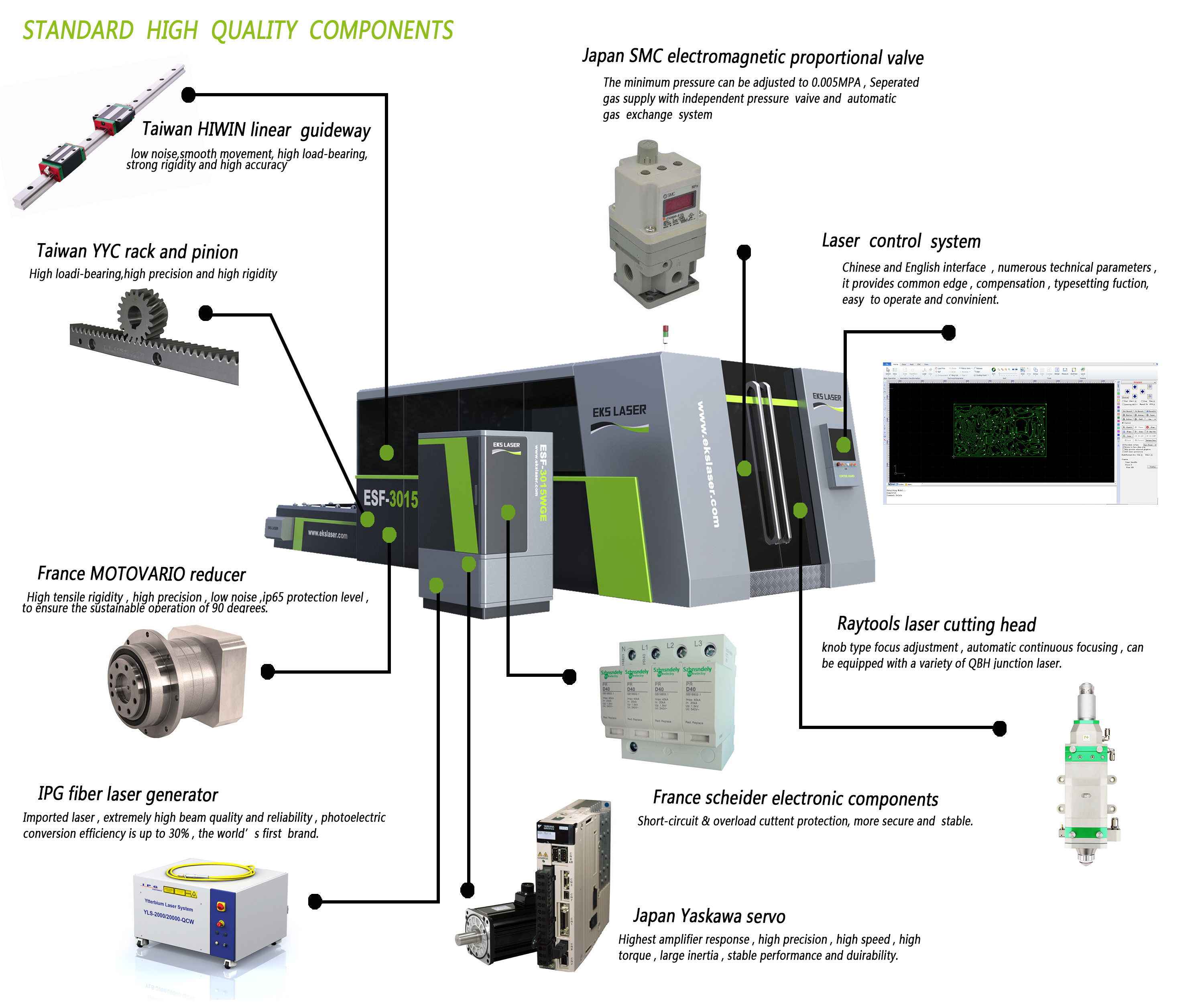

France SCHNEIDER electronic component

SCHNEIDER electronic component

Japan YASKAWA servo motor,

the highest amplifier responsiveness,100m/minute

YASKAWA servo motor

Deslagging system：

The movable tray under the machine tool could collect the scraps and small product during cutting process.

Deslagging system

Auto oil filling for rail and gear rack

Auto oil filling

Professional Cypcut Control system(FSCut 2000)

Control system

Cypcut is powerful, simple to operate, compatible with DXF, PLT, AI, NC-MASTER format and etc.

Separated control unit with air conditioner, which can keep a suitable working temperature for laser source and electric parts inside.

Factory Sightseeing

Factory Sightseeing

Factory Sightseeing2

List of Components

Item	Name	QTY	Brand
1	Laser
1)	Fiber Laser	1set	IPG
2	Laser Cutting Head	1	EKS laser
1)	Fiber-optical Laser Cutting Head	1set	Raytools/WSX
3	Control System
1)	Fiber Control System	1set	Cypcut 2000
4	Machine Tool
1)	Machine tool bed	1set	EKS laser
2)	Gear of X and Y axis(1.5kw & 2.0kw)	1 set	YYC
3)	Lead rail of X, Y and Z axis	1 set	HIWIN
4)	Ball screw of Z axis	1set	HIWIN
5)	Servo motor and driver of X and Y axis	3sets	YASKAWA
6)	Reduction box	1set	France Motovario
7)	Pneumatic system	1 set	Japan SMC
8)	Control cabinet	1set	Disconnect-type
9)	Accessories	1 set	EKS laser
5	Cooling System
1)	Water cooling system	1 set	Tongfei
6	Standard auxiliary component
1)	Movable tray	1 set	EKS laser
2)	Exhaust fan	1 set	EKS laser
3)	Pneumatic clamp	1 set	EKS laser

Model Type	ESF-3015WGE	ESF-4015WGE	ESF-4020WGE	ESF-6015WGE	ESF-6020WGE
Laser Generator	IPG/Raycus
Working area	3000*1500mm	4000*1500mm	4000*2000mm	6000*1500mm	6000*2000mm
Laser power	1000w/1500w/2000w/3000w/4000w/6000W/8000W/10000W
Max. speed	0-100/min(Depending on the material and thickness)
Positioning accuracy	±0.03mm
Repeat positioning accuracy	±0.02mm
X-axis travel	1500mm/2000mm
Y-axis travel	3000mm/4000mm/6000mm
Z-axis travel	100mm
Acceleration	1.6G
Transmission	Taiwan high precision gear rack +high precision linear guide rail
Power supply	380V/50Hz~60Hz
Machine weight	10000kgs/13000kgs/14000kgs/16000kgs/18000kgs

Technical parameters

Laser output power	3000W
Laser wavelength	1070 nm
Laser medium	Glass fiber with rate-earth element，brand IPG
Laser beam quality	<0.373mrad
Min. beam width	≤0.125mm
Working area	3000mm×1500 mm
Axial accuracy	≤±0.05mm/m
Repeated accuracy	≤±0.03mm/m
Max. thickness of cutting carbon steel	25mm (Optimum thickness 0.5--12mm)
Max. thickness of cutting Stainless Steel	12mm (Optimum thickness 0.5--8mm)
Power supply	380V/50HZ
The Period of Continuous Working	24 hours
Weight of main Machine	10000KG
Outline Size	8384mm3112mm2200mm

High Power Fiber Laser Cutting Machine

Working Cost( Only for reference)

Electricity cost （1000W）
Name	power（kW）	electricity			real consumption
laser source	7.5	≤21.2			21.2x0.8x0.15=2.05 USD
cutting bed	8.5				（use 80% power for cutting,0.15USD/1kw）
chiller	3
exhaust fan	2.2
Gas consumption cost
type	price （USD/bottle）	life（min/bottle）		total（USD/hour）			Remark
O2	2.3	60		2.3			1mm carbon steel
N2	3.85	15		15.38			1mm stainless
liquid N2	49.23（mid）	720		4.11			1mm stainless
Air	0	0		1.02（electronic）			below 2mm
consumable spare parts cost
consumable	life(hour)	Price(USD）	total （USD/hour）			Remark
Protective lens'	≥240	15.38	0.06USD/hour			The better the environment, the longer the working life
Copper nozzel	≥600	23.08	0.04USD/hour			very difficult
Ceramic ring	≥1500	76.92	0.05USD/hour
Total			0.15USD/hour
